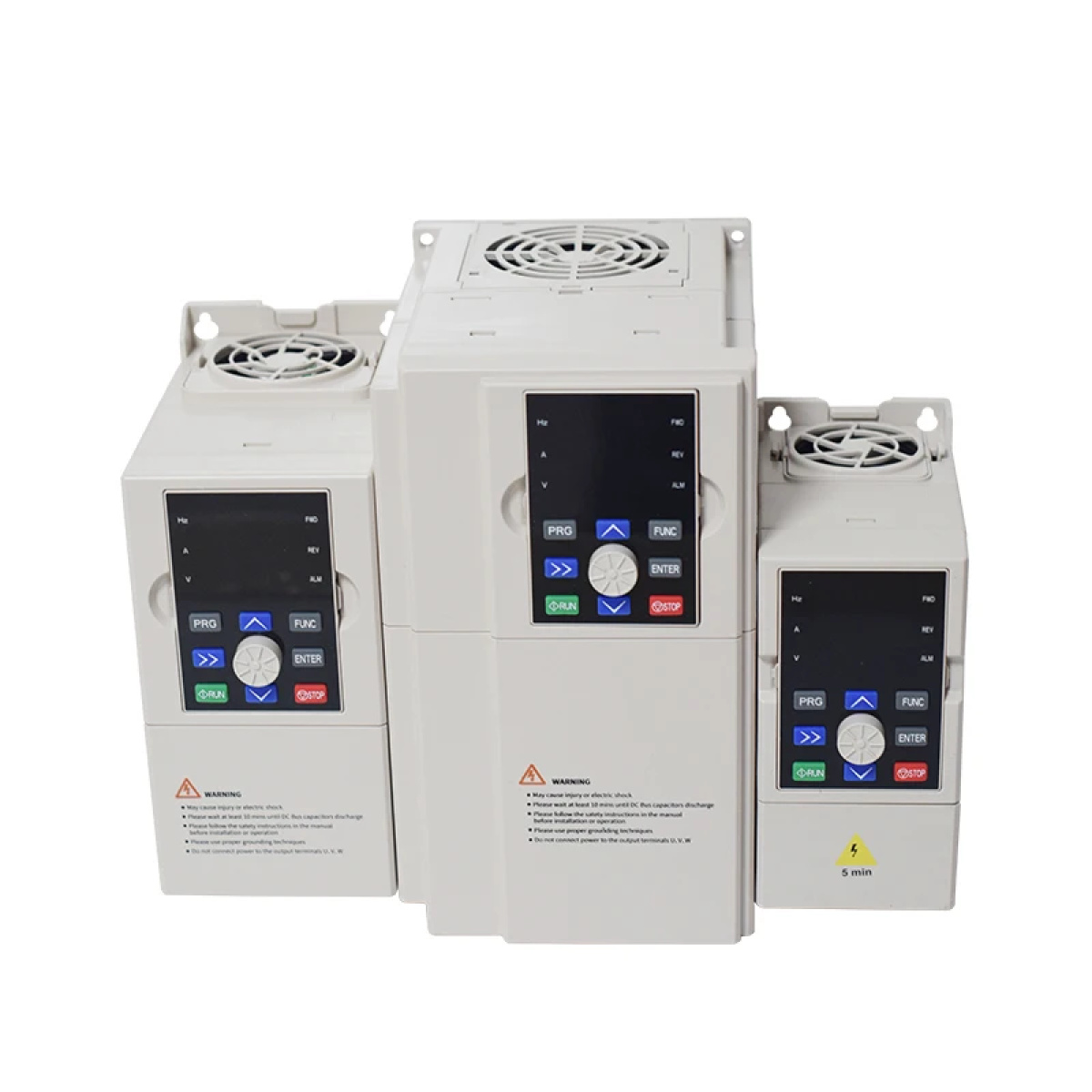

Solar VFD DC250-880V to 3PH 380V 11/15/18.5KW Variable Frequency Drive Converter for Motor Speed Control Inverter

Solar VFD DC250-880V to 3PH 380V 11/15/18.5KW Variable Frequency Drive Converter for Motor Speed Control Inverter - Image 2

Solar VFD DC250-880V to 3PH 380V 11/15/18.5KW Variable Frequency Drive Converter for Motor Speed Control Inverter - Image 3

Solar VFD DC250-880V to 3PH 380V 11/15/18.5KW Variable Frequency Drive Converter for Motor Speed Control Inverter - Image 4

Solar VFD DC250-880V to 3PH 380V 11/15/18.5KW Variable Frequency Drive Converter for Motor Speed Control Inverter - Image 5

Solar VFD DC250-880V to 3PH 380V 11/15/18.5KW Variable Frequency Drive Converter for Motor Speed Control Inverter - Image 6

Solar VFD DC250-880V to 3PH 380V 11/15/18.5KW Variable Frequency Drive Converter for Motor Speed Control Inverter

$640.00 $815.00Price range: $640.00 through $815.00

Ships From

CHINA

Color

11KW

15KW

18.5KW

Input Voltage

DC 250-880V

Output Voltage

3PH 0-460VAC

Add to wishlist

12 People watching this product now!

SKU: 3256807126739735 Categories: All products, Best Sellers, Deals, Industrial Automation, New Arrivals

Description

Hign-concerned Chemical: None
is_customized: Yes
Output Frequency: 0-300HZ
Model Number: ZA-D11T3
Type: DC/AC Inverters
Weight: 6.7kgs

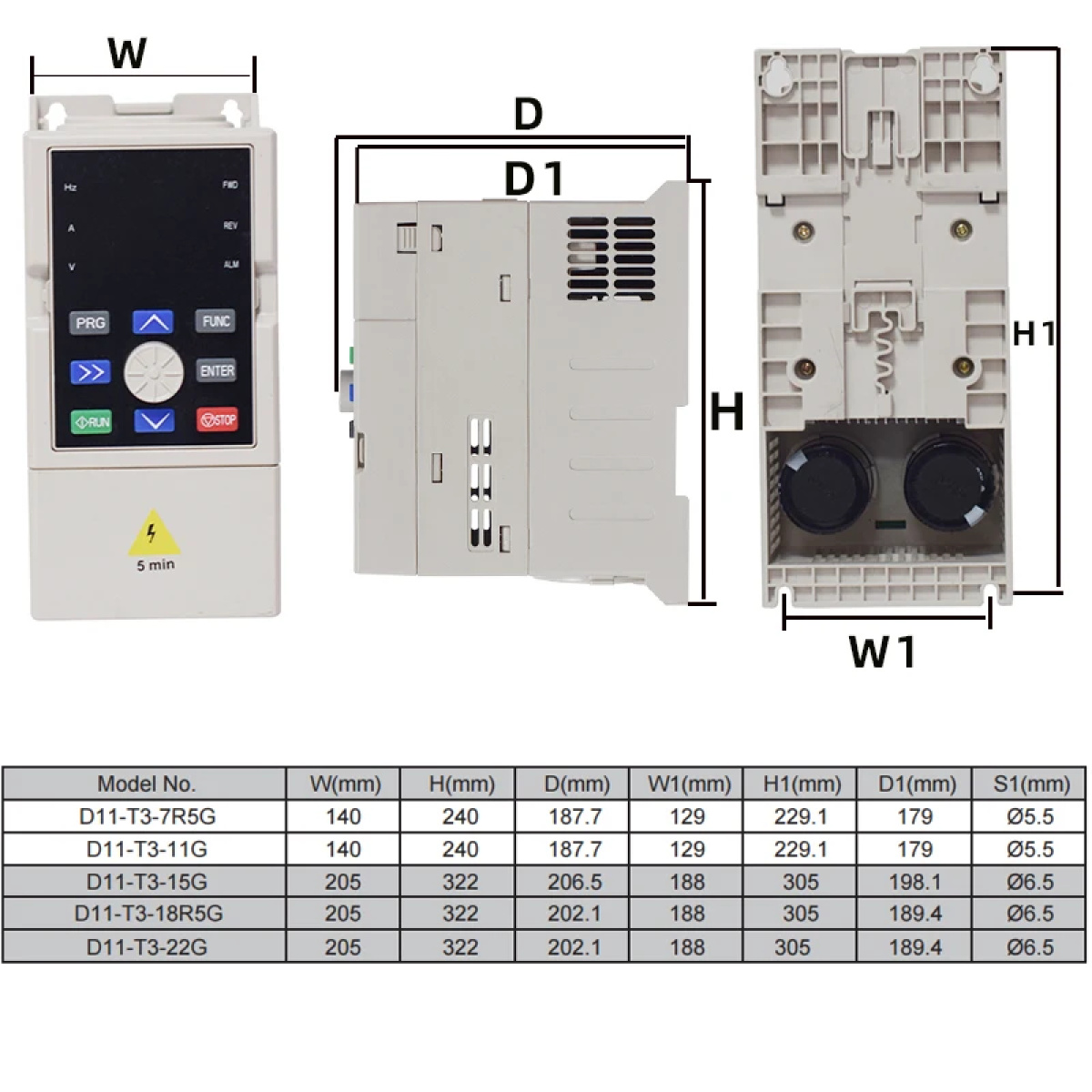

Size: 173*65*151MM
Output Type: triple
Brand Name: ZESTABLE
Origin: Mainland China
Certification: CE
Input Voltage: DC 250-880V
Output Voltage: 3PH 0-460VAC
Power: 0.4~500KW
Low Output Frequency: 0-300Hz
High Output Frequency: 0-3000Hz
Input Frequency: 47~63Hz

Technical Index and Specification

ZA-D11S2 VFD

Input :

1> : 1-phase 160-260VAC;47-63HZ

2> : DC150-400V solar vfd

Output: Voltage : 3 – phase ; 0～260V;0-300Hz

ZA-D11T3 VFD

Input :

1> : 3-phase 320-460V;47-63HZ

2> : DC300-700V solar vfd

Output: Voltage : 3 – phase ; 0～460V;0-300Hz

Control Mode :Vector control

Protective Function :Overcurrent, overvoltage, undervoltage, module fault, electric thermal relay, overheat, short circuit,

default phase of input and output, motor parameter adjustment abnormality, internal memory fault, etc.

For more function pls ask me for user’s manual >>>>>>>>>>>>>>>>>>>>>>>>>>>>

Safety Precaution:

1. Before wring, please make sure that the input power is off.

2. The wring work should be operated by the professional electrical engineer.

3. The grounding terminals must be connected with the ground.

4. Having paused circuit wiring emergently, please make sure that the check is effective.

5. Do not connect the output wire of the inverter with the shell, and pay attention that the

output wire should not be short-circuited.

6. Please check whether the voltage of the AC main circuit power is consistent with the rated voltage of the inverter.

7. Do not do the voltage withstand test on the inverter.

8. Please connect the brake resistor according to the wiring diagram.

9. Do not connect the power to the U, V, W output terminals.

10. Do not connect the contactor with the output circuit.
