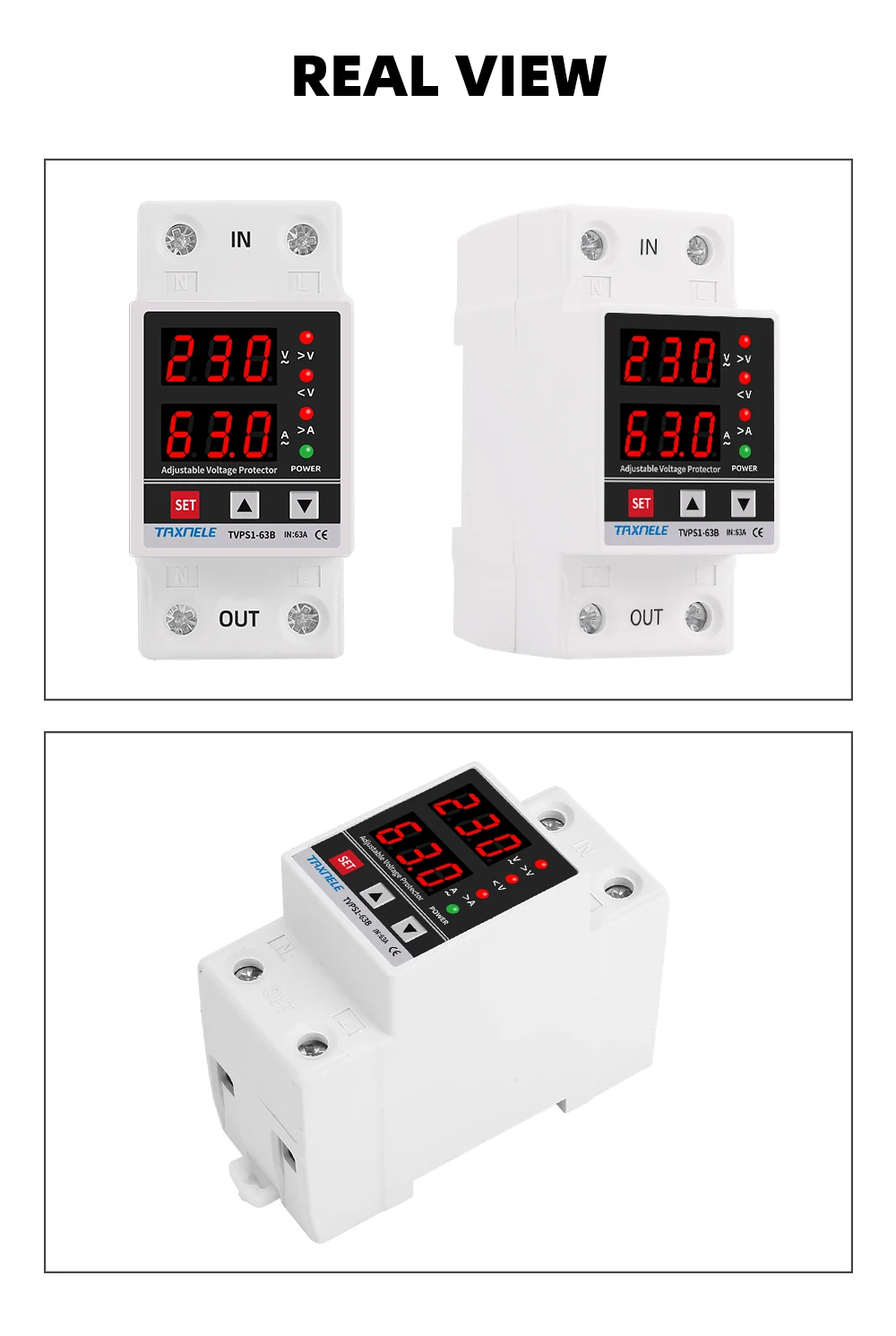

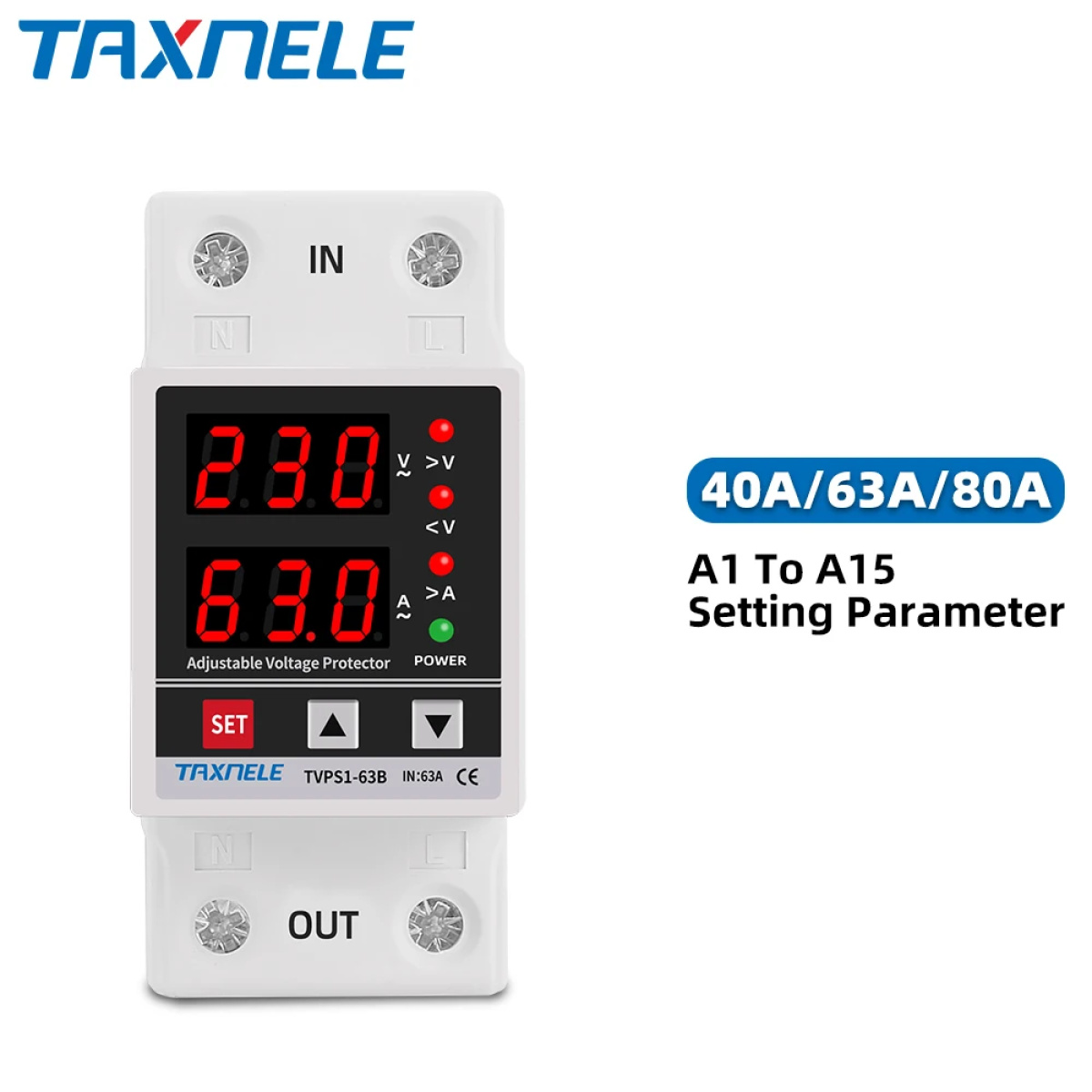

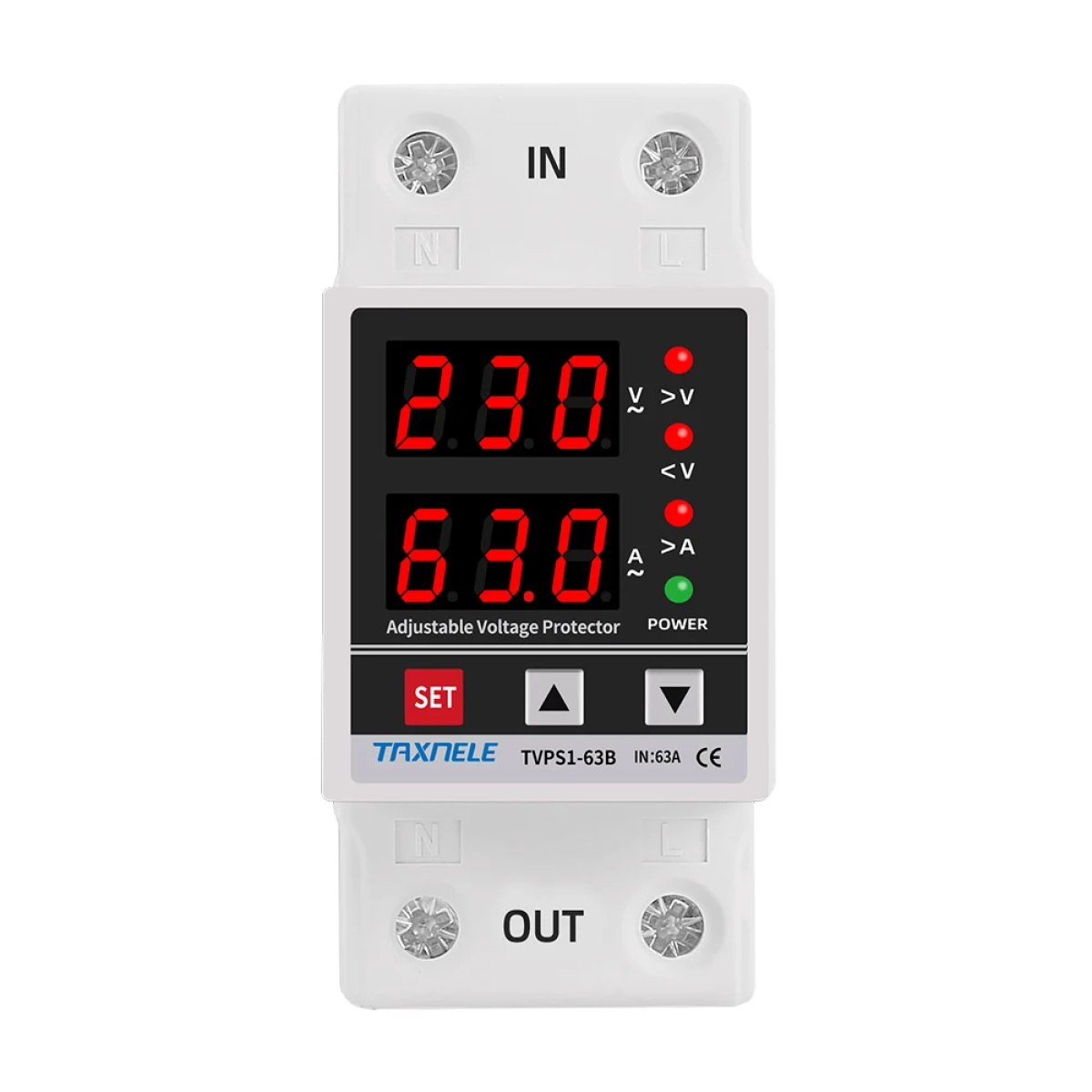

Dual Display 40A 63A 230V Din Rail Adjustable digital Over Under Voltage Relay Surge Protector Limit Over Current Protection
$21.00
16
People watching this product now!
Description
- Type: Moulded Case
- Model Number: TVPS1-63B
- is_customized: Yes
- Brand Name: TAXNELE
- Is Smart Device: No
- Origin: Mainland China
- Certification: CE
Parameter

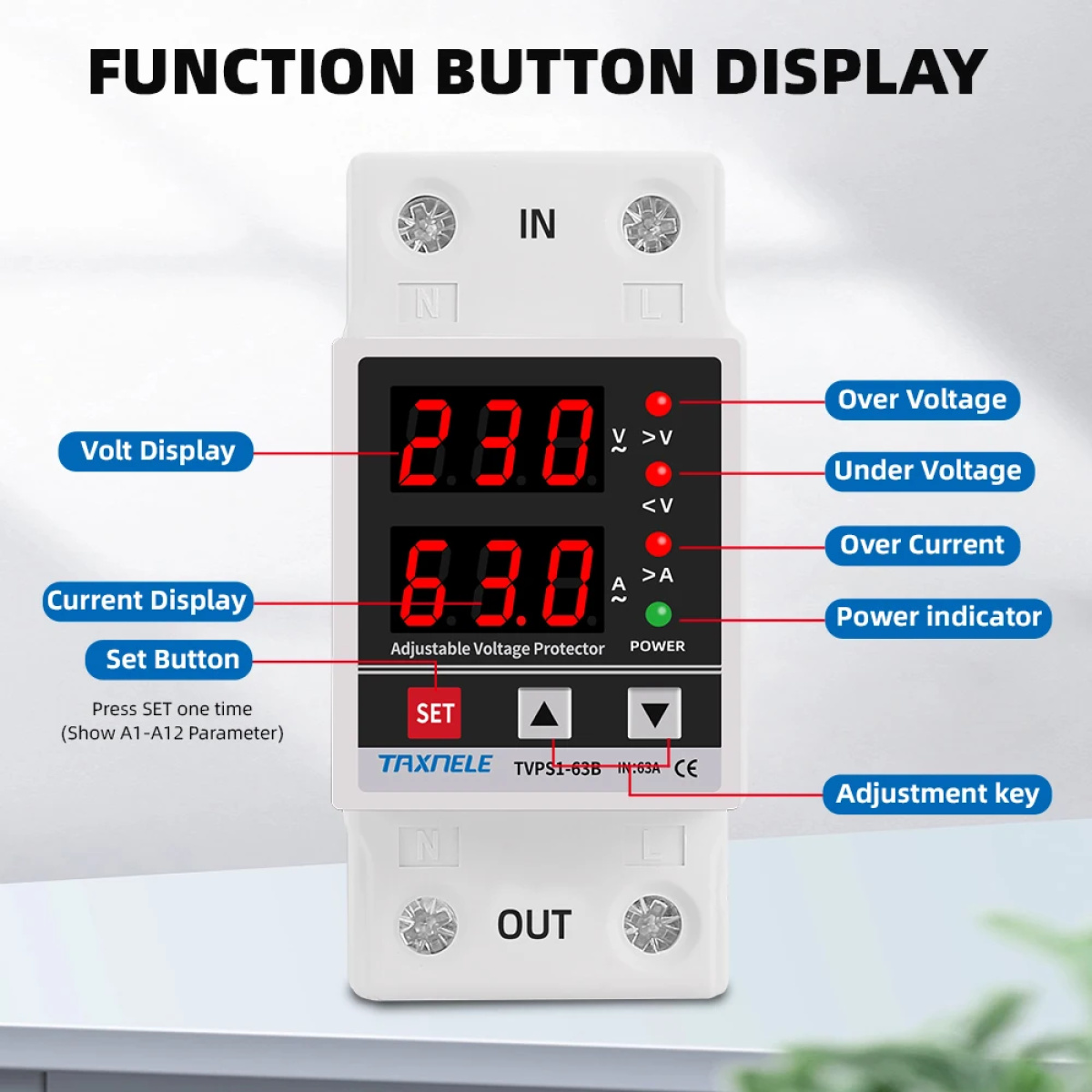

Functions:
1.Over-voltage protection
2.Under-voltage protection
3.Over-current protection
4.Automatic recovery
5.Voltage display(voltage measurement)
6.Current display (current measurement)
Product Parameters:
1.Model number:TVPS1-63B
2.Power supply:230VAC 50/60Hz
3.Max.Loading power:1~40A Adjustable(default:40A)
1~63A Adjustable(default:63A)
4.Over-voltage protection value range:230V~300~OFF(default:270V)
Over-voltage recovery voltage range:225V–295V(default:250V)
Over-voltage protection action time:0.1s~30s(default value:0.5s)
Over-voltage recovery delay time:1s~500s(default:30s)
5.Under-voltage protection value range:140V–210V –OFF(default:170V)
Under-voltage recovery voltage range:145V–215V (default:190V)
Under-voltage protection action time:0.1s~30s(default:0.5s)
Under-voltagerecovery delay time:1s~500s(default:30s)
6.Over-current adjustment range:1-40A (default:20A)1-63A(default:40A)
Over-current action range:0.1~30 second (default:0.5s)
Over-currentrecovery delay time:1s~500s(default:30s)
7.Power-on delay time:1s~500s(default:10s)
9.Power consumption : <2W
10.Electric machinery life : 100,000 times

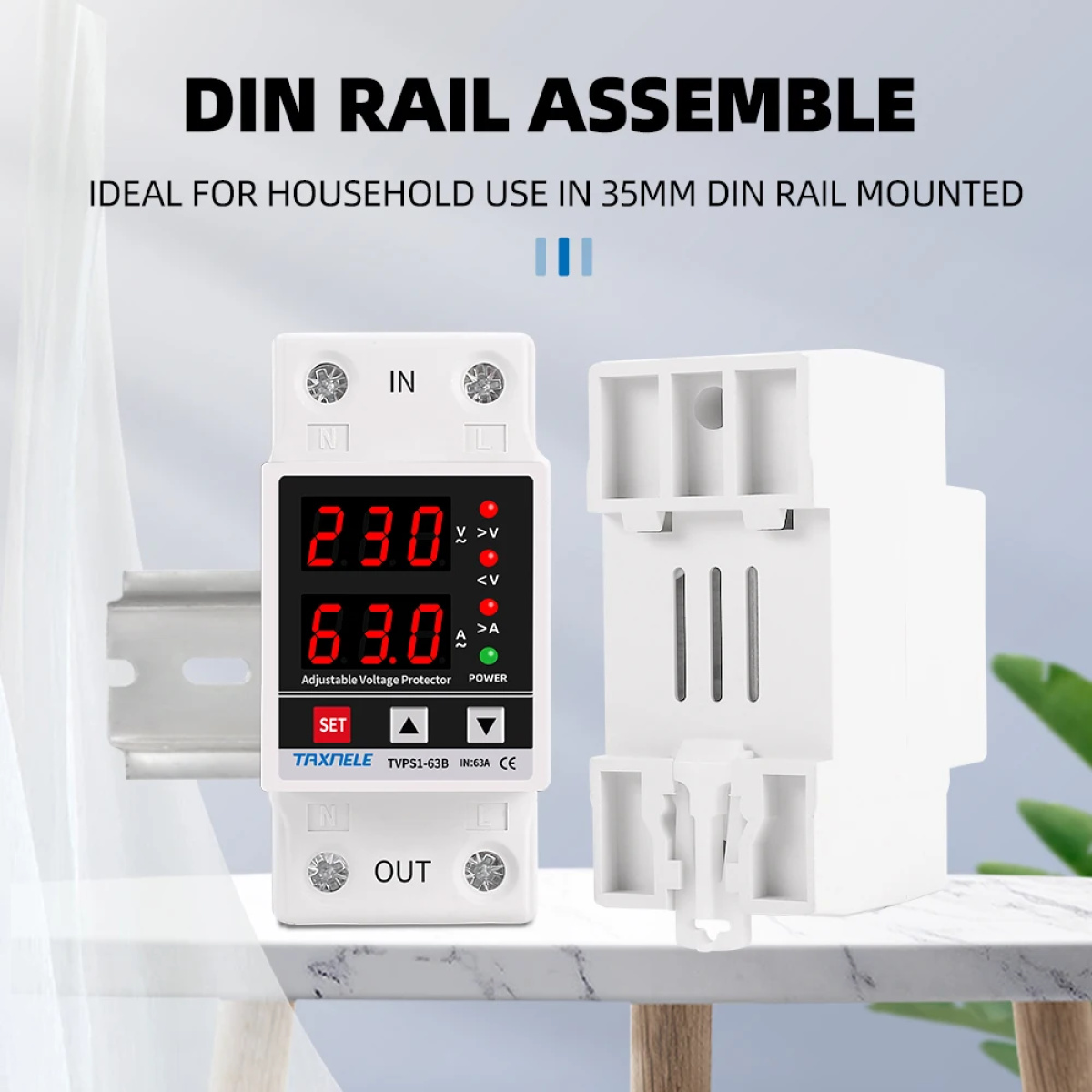

11.Installation:35mm DIN rail
Noted: When you first connect the product, you have to wait about 10 second(Power-on delay time:1s~500s(default:10s)),after the red light turn off, then the product will work.
