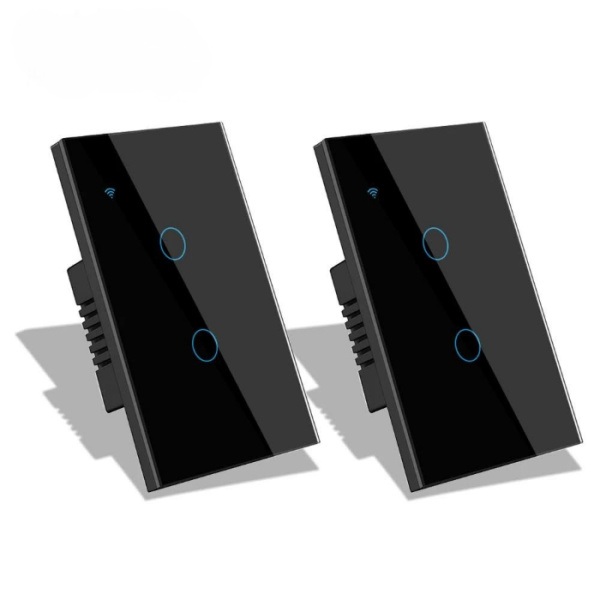

Tuya WiFi US Smart Switch Stair Switches Touch Sensor LED1/2/3Gang Lights Interruptor 2way Control Google Smart Home Glass Panel

Tuya WiFi US Smart Switch Stair Switches Touch Sensor LED1/2/3Gang Lights Interruptor 2way Control Google Smart Home Glass Panel

Specifications:

–Tempered glass panel wifi smart cross switches

–Standard: US Standard

–Used For: stair switch/bedside switch

–Input voltage:AC100-240V 50/60Hz

–Power current: 10A

–Load:Normal lamps:5~600W/Gang

–LED:5~300W/gang

–Stanby power: ≤0.2W

–Relative humidity: 10% ~ 93%

–Working temperature: -20℃~+55℃

–Certification: CE, RoHS,FCC

–Wifi Standard : 2.4GHz 802.11b/g/n

–Application: Smart Life/TUYA

–Wiring: Need neutral wire required

–Led indicator: ON-blue OFF-red

–Installation Box: Round and Square

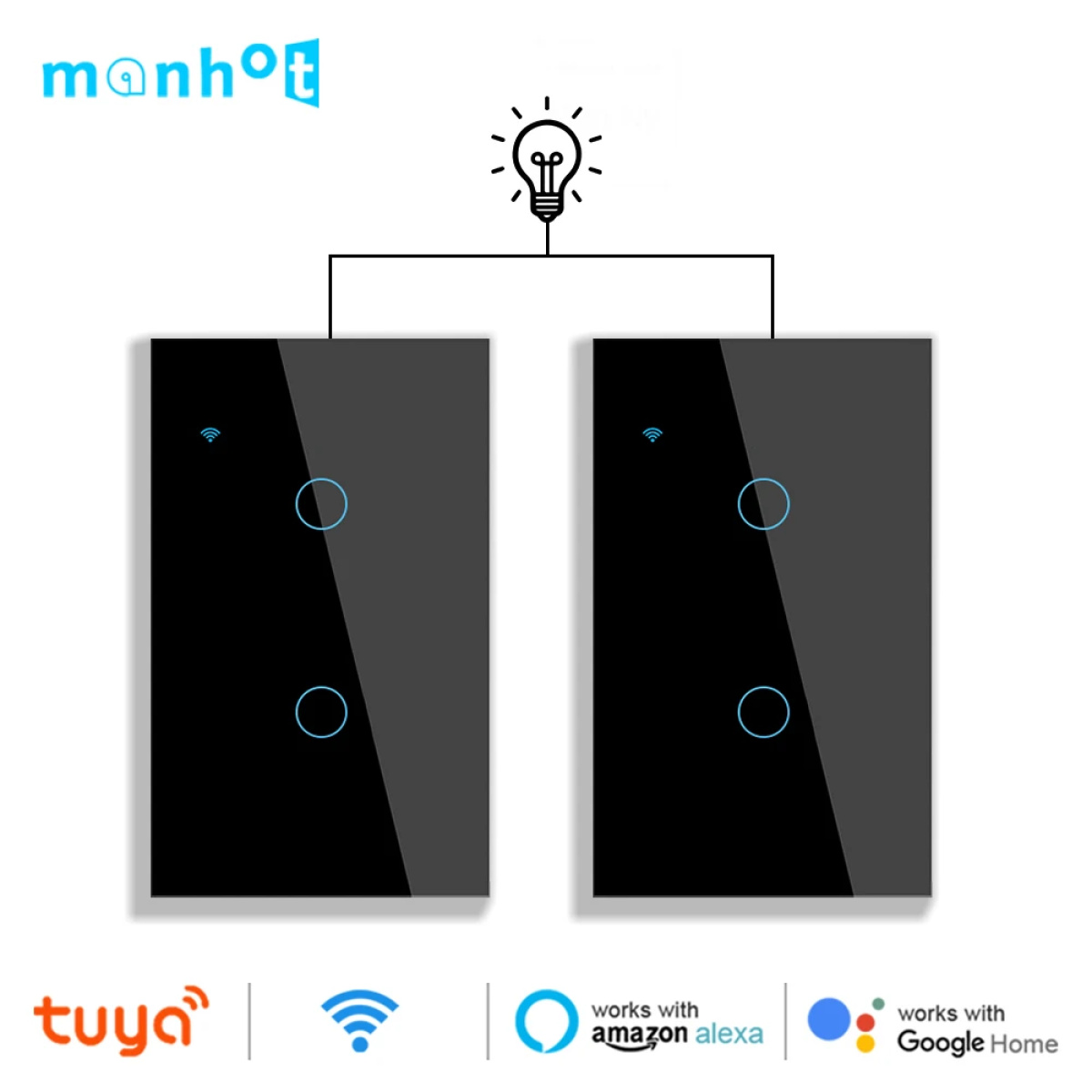

Multi-Control Association: wifi switches have 1/2/3/4way and can control one light from four Different places(the maximum is 4 way).

How to set up dual-controller association on your phone

1.Smart dual control 1 operation step

2.Need to have a network of operations and work multi -control

3.You need to add the WiFi switch to the graffiti app

4.The signal of the switch and the mobile phone needs to be operated under the same network

5.Select the switch → click to modify the next step → multi -control correlation →+associated switch → select the addition switch to return the APP homepage
